Hardware documentation – schematics, Eagle CAD files, PCB Gerbers.
Diy arduino usb host shield pro#
Later it is time to find out how the Pro mini drives the mini USB host shield, and try to use that shield directly with ESP32: first with Pro mini USB host shield sketch running on ESP32 flashed with Arduino IDE later (hopefully) directly with MicroPython() webreplclient.py / upysh with. Redirect printf() to USB Virtual COM Port on STM32H7 MCU. We use cookies and similar tools that are necessary to enable you to make purchases, to enhance your shopping experiences and to provide our services, as detailed in our Cookie Notice.We also use these cookies to understand how customers use our services (for example, by measuring site visits) so we can make improvements. Time to get the setup smaller when Arduino Pro mini USB host shield will arrive, with Arduino Pro mini. Shop Quality & Best Integrated Circuits Directly From China Integrated Circuits Suppliers. Enjoy Free Shipping Worldwide Limited Time Sale Easy Return.
Diy arduino usb host shield drivers#
Google ADK and PTP library with Canon EOS and Powershot, as well as Nikon DSLR cameras also, Mass Storage Class driver is in the works.įuture plans include development drivers for communication devices, such as WiFi, Bluetooth and cell phones, and support for other USB Host controllers. Arduino Uno has ATMEGA328 microcontroller in it, and STM32F103C8 has ARM Cortex- M3 which. (MEGA SALE) US 9.35 10 OFF Buy USB Host Shield 2.0 For Arduino UNO MEGA ADK Compatible For Android ADK DIY Electronic Module Board From Vendor Development Module Store.
Diy arduino usb host shield serial#
The following device classes are currently supported: human input device (HID), USB to serial converters, including CDC ACM, Prolific PL2303 and FTDI FT232. Current revision of the library (r2.0) supports MAX3421E host controllers, general USB functionality, enumeration of up to 44 devices with USB hub support, and MAX3421 GPIO pins access.
Diy arduino usb host shield software#

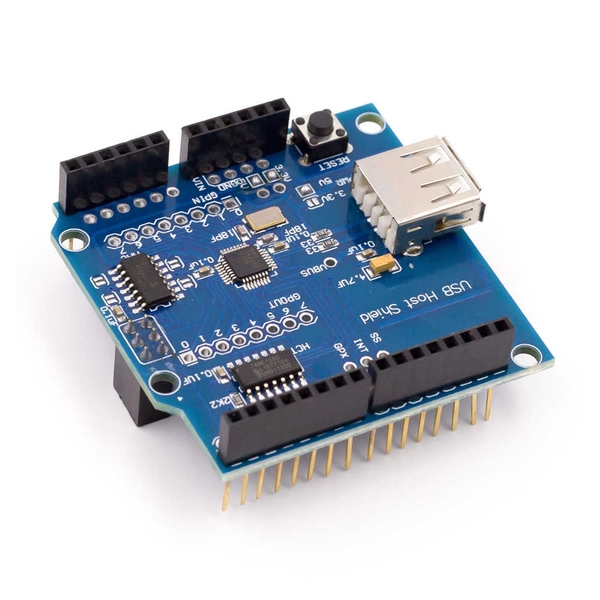

C Software support for new devices is constantly added at the moment, code for USB keyboard and PS3 controller are ready with Bluetooth and digital cameras in the. This shield adds USB Host capabilities to the popular Arduino platform. The shield exists in configurations compatible with 5V and 3.3V Arduino boards. The USB Host Shield contains all of the digital logic and analog circuitry necessary to implement a full-speed USB peripheral/host controller with your Arduino. The initial goal of the project was to develop Arduino code supporting USB Host controller in order to communicate with USB peripherals, such as keyboards, joysticks and cameras. This is a summary page for USB Host Shield project that I started in the spring of 2009. Now, when running the boardqc test from this library, I get the error: Circuits At Home 2011 USB Host Shield Quality Control Routine Reading REVISION register.
I bought this one from amazon, and went through a week of headache before I found the soldering resolution. Primary target platform is Arduino, however, it can also be used with any other micro equipped with SPI interface. I'm working on a project that requires a USB Host Shield. The board supports USB 2.0 full/low speed operation. And I think making this one is much easier than using Teensy with mini host shield.Īfter simply cleaning the PCBs, it looks a litter better now.USB Host Shield is an inexpensive ( $25 for the full-sized board and $20 for the Mini variant ) development board designed to be used in embedded applications which require USB Host functionality. Two extra wires are needed here, one to VBUS and the other connects reset with 3.3v. There is no jumper on this mini host shield so I cut the line on pcb. Keyboard or mouse can be connected to Arduino with the shield, wireless communication can be done with bluetooth dongle, you can connect to barcode reader and even your phone.MAX3421 is used on board as USB host/SPI converter IC.
Diy arduino usb host shield mod#
Mini host shield need a little mod to separate the USB host power from the 3.3v power. Arduino USB Host Shield is a board which gives USB interface features to Arduino board and possibility to stack USB devices to Arduino. Only +5v and reset need to be hand wired.įirstly, I've tested the connections and it works well as a USB to USB keyboard converter. I draw a simple pic to show pin connections. There are a few examples for Teensy with mini host shield. I separated them and combined them again. I got Pro Micro 3.3V and mini host shield from a friend of mine who combined all pins of the two together in a wrong way. I've searched the web and found only Teensy with mini host shield to do this. I found there is no guide that uses a Pro Micro 3.3V(not Mini) with mini host shield to make a USB to USB keyboard converter. Haus's USB to USB keyboard converter topic:
